Accessories for control instruments
NEW:

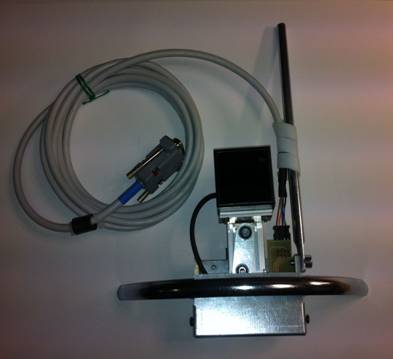

Motorized
optical head used to recognizing the defects into “lycra” tissue.
This kind of defects are not
recognized from other optic heads.
Compatible with existing
control instruments:
- FM10 (single head), - FM20
(paired with traditional optic head), - AGF2 (single head, paired with needles
control head)
|
Part
numbers |
Description |
|
Contact us |
MOTORIZED
HEAD LYCRA |
Optic head
BLUE 40X60 used to check texture quality , to be connected at instruments FM10BLU,
AGF2B, FM20BLU, MT2, MT3
Note: Optic Heads BLUE type are
better at work because of internal partition in separate optic cells.
Them has to be connected to
BLUE type instruments .
|
Part
numbers |
Description |
|
854 |
FM10BLU
OPTIC HEAD 40X60 |
|
Related
Accessories |
Description |
|
811 |
FM8
LARGE SLEIGH |
Optic head BLUE
2X40X40 used to check texture quality , to be connected at instruments FM10BLU,
AGF2B, FM20BLU, MT2, MT3
Note: Optic Heads BLUE type are
better at work because of internal partition in separate optic cells.
Them has to be connected to
BLUE type instruments .
|
Part
numbers |
Description |
|
855 |
OPTIC HEAD BLUE FOR FM10 2X40X40 |
|
Related
Accessories |
Description |
|
811 |
FM8
LARGE SLEIGH |
Optic head 40X60
used to check texture quality , to be connected at instruments
FM6,FM8,FM10,AGF2
|
Part
numbers |
Description |
|
809 |
FM8
OPTIC HEAD 40X60 |
|
862 |
FM10 OPTIC HEAD 40X60 (ANCHE PER AGF) |
|
854 |
FM10BLU
OPTIC HEAD 40X60 |
|
Related
Accessories |
Description |
|
811 |
FM8
LARGE SLEIGH |
Optic head 40X60
used to check texture quality , to be connected at instruments C89
|
Part
numbers |
description |
|
848 |
C89
OPTIC HEAD 40X60 |
|
Related
Accessories |
Description |
|
811 |
FM8
LARGE SLEIGH |
Optic head
2X40X40 used to check texture quality , to be connected at instruments FM6,
FM8,FM10,AGF2
|
Part
numbers |
description |
|
816 |
FM8
FM10 TESTINA OTTICA 2X40X40 |
|
Related
Accessories |
Description |
|
811 |
FM8
LARGE SLEIGH |
Optic head
2X40X40 used to check texture quality , to be connected at instruments C89
|
Part
numbers |
Description |
|
849 |
C89
TESTINA OTTICA 2X40X40 |
|
Related
Accessories |
Description |
|
811 |
FM8
LARGE SLEIGH |
This Sleigh
can be mounted onto optic head to improve woven flow
|
Part
numbers |
Description |
|
811 |
FM8
LARGE SLEIGH |
mechanical
support for optic head, hold optic heads onto yarn guide
|
Part
numbers |
Description |
|
810 |
FM8
OPTIC HEAD BRACKET |
|
863 |
FM10
OPTIC HEAD BRACKET |
Magnetic
sensor plus magnet used to read machine turns, connect to instruments FM6, FM8,
FM10, C89
|
Part
numbers |
Description |
|
812 |
MAGNETIC SENSOR PLUS MAGNET WITH BRACKET |
|
865 |
FM10 MAGNETIC SENSOR PLUS MAGNET WITH BRACKET |
Key to plug
into instrument for access to password control functions on FM8, FM10, AGF
|
Part
numbers |
Description |
|
814 |
FM8
PASS |
|
867 |
FM10
AGF PASS |
Power supply
and services cable for instruments FM8, FM10
|
Part
numbers |
Description |
|
813 |
FM8
POWER SUPPLY CABLE |
|
866 |
FM10
POWER SUPPLY CABLE |
Optic needle
scanner used to count needle heads with instruments AG12, AG14, AGF2
|
Part
numbers |
Description |
|
822 |
AG12/AG14/AGF OPTIC NEEDLE SCANNER |
Mechanical
support for Optic needle scanner
|
Part
numbers |
Description |
|
823 |
AG12/AG14/AGF BRACKET FOR NEEDLE SCANNER |
This
Amplifier has to be used to connect one or two optic needle scanner to
instruments AG12, AG14, AGF2
|
Part
numbers |
Description |
|
824 |
AG14/AGF AMPLIFIER WITH 2 INPUTS |
Precision
magnetic sensor that have to be used on instruments AG12, AG14, AGF2
|
Part
numbers |
Description |
|
825 |
AG14/AGF MAGNETIC SENSOR PLUS MAGNET |
Key to plug
into instrument for access to password control functions on AG12, AG14
|
Part
numbers |
Description |
|
827 |
AG14/AGF
PASS |

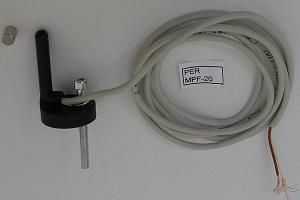

Set of
Magnetic sensor plus magnet and bracket for LFA on feeders type MPF-20
|
Part
numbers |
Description |
|
802 |
SET
FOR FEEDERS MPF20 |
Set of
Magnetic sensor plus magnet and bracket for LFA on feeders type MPF-L
|
Part
numbers |
Description |
|
800 |
SET FOR FEEDERS MPF-L |
Power supply
and services cable for instruments AG12, AG14, AGF2
|
Part
numbers |
Description |
|
826 |
AG14/AGF POWER SUPPLY CABLE |
For
informations:
info@martexonline.it
